[Unreal GAS] Implementing Attack Hit Detect System

일단 애니메이션 노티파이 하나 생성



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Animation/AnimNotifies/AnimNotify.h"
#include "GameplayTagContainer.h"
#include "AnimNotify_GASAttackHitCheck.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLEGAS_API UAnimNotify_GASAttackHitCheck : public UAnimNotify
{
	GENERATED_BODY()

public:
	UAnimNotify_GASAttackHitCheck();

protected:
	virtual FString GetNotifyName_Implementation() const override;
	virtual void Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, const FAnimNotifyEventReference& EventReference) override;

protected:
	UPROPERTY(EditAnywhere)
	FGameplayTag TriggerGameplayTag;
};

// Fill out your copyright notice in the Description page of Project Settings.


#include "Animation/AnimNotify_GASAttackHitCheck.h"
#include "AbilitySystemBlueprintLibrary.h"

UAnimNotify_GASAttackHitCheck::UAnimNotify_GASAttackHitCheck()
{
}

FString UAnimNotify_GASAttackHitCheck::GetNotifyName_Implementation() const
{
	return TEXT("GASAttackHitCheck");
}

void UAnimNotify_GASAttackHitCheck::Notify(USkeletalMeshComponent* MeshComp, UAnimSequenceBase* Animation, const FAnimNotifyEventReference& EventReference)
{
	Super::Notify(MeshComp, Animation, EventReference);

	if ( MeshComp )
	{
		AActor* OwnerActor = MeshComp->GetOwner();

		if ( OwnerActor )
		{
			FGameplayEventData PayloadData;
			UAbilitySystemBlueprintLibrary::SendGameplayEventToActor(OwnerActor, TriggerGameplayTag, PayloadData);
		}
	}
}

SendGameplayEventToActor

다른 액터한테 태그 날려서 이벤트를 발생시킬 수가 있음

* 해당 모듈보다 위에 있는 모듈의 코드에서 노티파이 사용 불가 주의

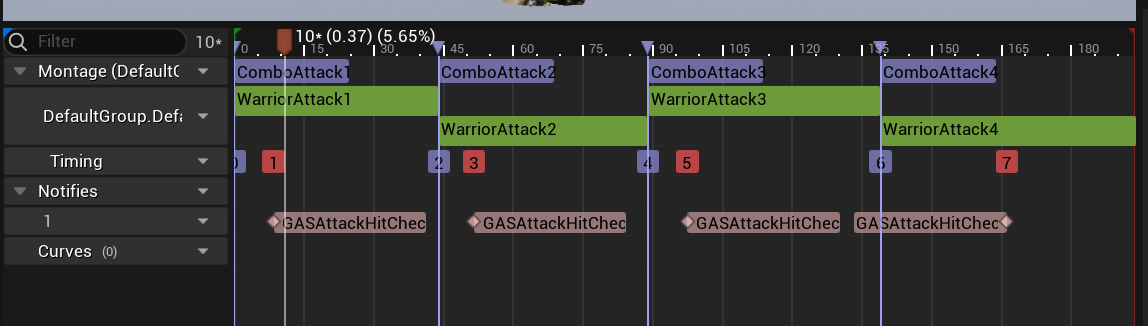

노티파이 설정



태그 만들고



각 노티파이에 태그 설정

저 태그를 트리거로 사용할 것임



// Fill out your copyright notice in the Description page of Project Settings.


#include "GA/ABGA_AttackHitCheck.h"
#include "ArenaBattleGAS.h"

UABGA_AttackHitCheck::UABGA_AttackHitCheck()
{
	InstancingPolicy = EGameplayAbilityInstancingPolicy::InstancedPerActor;
}

void UABGA_AttackHitCheck::ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData)
{
	Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

	ABGAS_LOG(LogABGAS, Log, TEXT("Begin"));

	bool bReplicatedEndAbility = true;
	bool bWasCancelled = false;
	EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, bReplicatedEndAbility, bWasCancelled);
}

게임 어빌리티

이걸 트리거로 발생시키려면?



위의 게임어빌리티 상속해서 블루프린트로 만들고 트리거 태그에 추가



그리고 캐릭터 어빌리티에 추가

다음은 어빌리티 태스크로 판정 만들어주기

ABAT_Trace



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Abilities/Tasks/AbilityTask.h"
#include "ABAT_Trace.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE(FTraceResultDelegate);

/**
 *
 */
UCLASS()
class ARENABATTLEGAS_API UABAT_Trace : public UAbilityTask
{
	GENERATED_BODY()

public:
	UABAT_Trace();

	UFUNCTION(BlueprintCallable, Category = "Ability|Tasks", meta = (DisplayName = "JumpAndWaitForLanding", HidePin = "OwningAbility", DefaultToSelf = "OwningAbility", BlueprintInternalUseOnly = "TRUE"))
	static UABAT_Trace* CreateTask(UGameplayAbility* OwningAbility);

	virtual void Activate() override;
	virtual void OnDestroy(bool AbilityEnded) override;

	UPROPERTY(BlueprintAssignable)
	FTraceResultDelegate OnComplete;
};

// Fill out your copyright notice in the Description page of Project Settings.


#include "GA/AT/ABAT_Trace.h"

UABAT_Trace::UABAT_Trace()
{
}

UABAT_Trace* UABAT_Trace::CreateTask(UGameplayAbility* OwningAbility)
{
	UABAT_Trace* NewTask = NewAbilityTask<UABAT_Trace>(OwningAbility);
	return NewTask;
}

void UABAT_Trace::Activate()
{
	Super::Activate();

	if ( ShouldBroadcastAbilityTaskDelegates() )
	{
		OnComplete.Broadcast();
	}

	EndTask();
}

void UABAT_Trace::OnDestroy(bool AbilityEnded)
{
	Super::OnDestroy(AbilityEnded);
}

기본 골격만 만든 상태



* 게임플레이 어빌리티 타겟 액터

- 게임플레이 어빌리티에서 대상에 대한 판정(주로 물리 판정)을 구현할 때 사용하는 특수한 액터

- 줄여서 TA라고 함

- AGameplayAbilityTargetActor 클래스를 상속받아 구현

- 왜 TA가 필요한가?

    - 타겟을 설정하는 다양한 방법이 있음

    - Trace를 사용해 즉각적으로 타겟을 검출하는 방법

    - 사용자의 최종 확인을 한번 더 거치는 방법이 있음 (ex. 원거리 범위 공격)

    - 공격 범위 확인을 위한 추가 시각화 (시각화를 수행하는 액터를 월드레티클(WorldReticle)이라고 함)

- 주요 함수

    - StartTargeting : 타겟팅을 시작

    - ConfirmTargetingAndContinue : 타겟팅을 확정하고 이후 남은 프로세스를 진행

    - ConfirmTargeting : 태스크 진행 없이 타겟팅만 확정

    - CancleTargeting : 타겟팅을 취소



* 게임플레이 어빌리티 타겟 데이터

- 타겟 액터에서 판정한 결과를 담은 데이터

- 다음의 속성을 가지고 있음

    - Trace 히트 결과 (HitResult)

    - 판정된 다수의 액터 포인터

    - 시작 지점

    - 끝 지점

- 타겟 데이터를 여러 개 묶어 전송하는 것이 일반적인데 이를 타겟 데이터 핸들이라고 함



타겟 액터 생성

즉각적인 판정만 낼 거라 Cancel은 안하고 StartTargeting과 ConfirmTargeting만 구현



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Abilities/GameplayAbilityTargetActor.h"
#include "ABTA_Trace.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLEGAS_API AABTA_Trace : public AGameplayAbilityTargetActor
{
	GENERATED_BODY()

public:
	AABTA_Trace();

	virtual void StartTargeting(UGameplayAbility* Ability) override;

	virtual void ConfirmTargetingAndContinue() override;

	void SetShowDebug(bool InShowDebug) { bShowDebug = InShowDebug; }

protected:
	virtual FGameplayAbilityTargetDataHandle MakeTargetData() const;

	bool bShowDebug = false;
};

// Fill out your copyright notice in the Description page of Project Settings.


#include "GA/TA/ABTA_Trace.h"
#include "Abilities/GameplayAbility.h"
#include "GameFramework/Character.h"
#include "Components/CapsuleComponent.h"
#include "Physics/ABCollision.h"
#include "DrawDebugHelpers.h"

AABTA_Trace::AABTA_Trace()
{
}

void AABTA_Trace::StartTargeting(UGameplayAbility* Ability)
{
	Super::StartTargeting(Ability);
	SourceActor = Ability->GetCurrentActorInfo()->AvatarActor.Get();
}

void AABTA_Trace::ConfirmTargetingAndContinue()
{
	if ( SourceActor )
	{
		FGameplayAbilityTargetDataHandle DataHandle = MakeTargetData();
		TargetDataReadyDelegate.Broadcast(DataHandle);
	}
}

FGameplayAbilityTargetDataHandle AABTA_Trace::MakeTargetData() const
{
	ACharacter* Character = CastChecked<ACharacter>(SourceActor);

	FHitResult OutHitResult;
	const float AttackRange = 100.0f;
	const float AttackRaduis = 50.0f;

	FCollisionQueryParams Params(SCENE_QUERY_STAT(UABAT_Trace), false, Character);
	const FVector Forward = Character->GetActorForwardVector();
	const FVector Start = Character->GetActorLocation() + Forward * Character->GetCapsuleComponent()->GetScaledCapsuleRadius();
	const FVector End = Start + Forward * AttackRange;

	bool HitDetected = GetWorld()->SweepSingleByChannel(OutHitResult, Start, End, FQuat::Identity, CCHANNEL_ABACTION, FCollisionShape::MakeSphere(AttackRaduis), Params);

	FGameplayAbilityTargetDataHandle DataHandle;
	if ( HitDetected )
	{
		FGameplayAbilityTargetData_SingleTargetHit* TargetData = new FGameplayAbilityTargetData_SingleTargetHit(OutHitResult);
		DataHandle.Add(TargetData);
	}

#if ENABLE_DRAW_DEBUG
	if ( bShowDebug )
	{
		FVector CapsuleOrigin = Start + (End - Start) * 0.5f;
		float CapsultHalfHeight = AttackRange * 0.5f;
		FColor DrawColor = HitDetected ? FColor::Green : FColor::Red;
		DrawDebugCapsule(GetWorld(), CapsuleOrigin, CapsultHalfHeight, AttackRaduis, FRotationMatrix::MakeFromZ(Forward).ToQuat(), DrawColor, false, 5.0f);
	}
#endif

	return DataHandle;
}

타겟 액터

어빌리티 태스크에서 타겟 액터를 만들고 StartTargeting이랑 ConfirmTargetingAndContinue 호출할 것임

TargetDataReadyDelegate는 타겟 액터 기본 제공 델리게이트

타겟 데이터 생성이 끝나고 브로드캐스트 해주면 됨



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Abilities/Tasks/AbilityTask.h"
#include "ABAT_Trace.generated.h"

DECLARE_DYNAMIC_MULTICAST_DELEGATE_OneParam(FTraceResultDelegate, const FGameplayAbilityTargetDataHandle&, TargetDataHandle);

/**
 *
 */
UCLASS()
class ARENABATTLEGAS_API UABAT_Trace : public UAbilityTask
{
	GENERATED_BODY()

public:
	UABAT_Trace();

	UFUNCTION(BlueprintCallable, Category = "Ability|Tasks", meta = (DisplayName = "JumpAndWaitForLanding", HidePin = "OwningAbility", DefaultToSelf = "OwningAbility", BlueprintInternalUseOnly = "TRUE"))
	static UABAT_Trace* CreateTask(UGameplayAbility* OwningAbility, TSubclassOf<class AABTA_Trace> TargetActorClass);

	virtual void Activate() override;
	virtual void OnDestroy(bool AbilityEnded) override;

	void SpawnAndInitializeTargetActor();
	void FinalizeTargetActor();

	UPROPERTY(BlueprintAssignable)
	FTraceResultDelegate OnComplete;

protected:
	void OnTargetDataReadyCallback(const FGameplayAbilityTargetDataHandle& DataHandle);

	UPROPERTY()
	TSubclassOf<class AABTA_Trace> TargetActorClass;

	UPROPERTY()
	TObjectPtr<class AABTA_Trace> SpawnedTargetActor;
};

어빌리티 태스크 헤더

// Fill out your copyright notice in the Description page of Project Settings.


#include "GA/AT/ABAT_Trace.h"
#include "GA/TA/ABTA_Trace.h"
#include "AbilitySystemComponent.h"

UABAT_Trace::UABAT_Trace()
{
}

UABAT_Trace* UABAT_Trace::CreateTask(UGameplayAbility* OwningAbility, TSubclassOf<AABTA_Trace> TargetActorClass)
{
	UABAT_Trace* NewTask = NewAbilityTask<UABAT_Trace>(OwningAbility);
	NewTask->TargetActorClass = TargetActorClass;
	return NewTask;
}

void UABAT_Trace::Activate()
{
	Super::Activate();
	SpawnAndInitializeTargetActor();
	FinalizeTargetActor();

	SetWaitingOnAvatar();
}

void UABAT_Trace::OnDestroy(bool AbilityEnded)
{
	if ( SpawnedTargetActor )
	{
		SpawnedTargetActor->Destroy();
	}

	Super::OnDestroy(AbilityEnded);
}

void UABAT_Trace::SpawnAndInitializeTargetActor()
{
	SpawnedTargetActor = Cast<AABTA_Trace>(GetWorld()->SpawnActorDeferred<AGameplayAbilityTargetActor>(TargetActorClass, FTransform::Identity, nullptr, nullptr, ESpawnActorCollisionHandlingMethod::AlwaysSpawn));
	if (SpawnedTargetActor)
	{
		SpawnedTargetActor->SetShowDebug(true);
		SpawnedTargetActor->TargetDataReadyDelegate.AddUObject(this, &UABAT_Trace::OnTargetDataReadyCallback);
	}
}

void UABAT_Trace::FinalizeTargetActor()
{
	UAbilitySystemComponent* ASC = AbilitySystemComponent.Get();

	if ( ASC )
	{
		const FTransform SpawnTransform = ASC->GetAvatarActor()->GetTransform();
		SpawnedTargetActor->FinishSpawning(SpawnTransform);

		ASC->SpawnedTargetActors.Add(SpawnedTargetActor);
		SpawnedTargetActor->StartTargeting(Ability);
		SpawnedTargetActor->ConfirmTargeting();
	}
}

void UABAT_Trace::OnTargetDataReadyCallback(const FGameplayAbilityTargetDataHandle& DataHandle)
{
	if (ShouldBroadcastAbilityTaskDelegates())
	{
		OnComplete.Broadcast(DataHandle);
	}

	EndTask();
}

Activate에서 두 함수를 호출하고 대기시킴



void UABAT_Trace::SpawnAndInitializeTargetActor()
{
	SpawnedTargetActor = Cast<AABTA_Trace>(GetWorld()->SpawnActorDeferred<AGameplayAbilityTargetActor>(TargetActorClass, FTransform::Identity, nullptr, nullptr, ESpawnActorCollisionHandlingMethod::AlwaysSpawn));
	if (SpawnedTargetActor)
	{
		SpawnedTargetActor->SetShowDebug(true);
		SpawnedTargetActor->TargetDataReadyDelegate.AddUObject(this, &UABAT_Trace::OnTargetDataReadyCallback);
	}
}

SpawnAndInitializeTargetActor : 타겟 액터 스폰

타겟 액터의 TargetDataReadyDelegate 구독하여 OnTargetDataReadyCallback 바인딩



TargetDataReadyDelegate -> OnTargetDataReadyCallback

하면 OnComplete 브로드캐스트

TargetDataReadyDelegate -> OnComplete 로 이어짐



void UABAT_Trace::FinalizeTargetActor()
{
	UAbilitySystemComponent* ASC = AbilitySystemComponent.Get();

	if ( ASC )
	{
		const FTransform SpawnTransform = ASC->GetAvatarActor()->GetTransform();
		SpawnedTargetActor->FinishSpawning(SpawnTransform);

		ASC->SpawnedTargetActors.Add(SpawnedTargetActor);
		SpawnedTargetActor->StartTargeting(Ability);
		SpawnedTargetActor->ConfirmTargeting();
	}
}

FinalizeTargetActor : FinishSpawning 후 ASC에 타겟 액터 등록시키기

그리고 StartTargeting, ConfirmTargeting 호출

이러면 MakeTargetData까지 호출되고 그렇게 만들어진 데이터 핸들을 인자로 델리게이트 브로드캐스트 시작



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Abilities/GameplayAbility.h"
#include "ABGA_AttackHitCheck.generated.h"

/**
 *
 */
UCLASS()
class ARENABATTLEGAS_API UABGA_AttackHitCheck : public UGameplayAbility
{
	GENERATED_BODY()

public:
	UABGA_AttackHitCheck();
	virtual void ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData) override;

protected:
	UFUNCTION()
	void OnTraceResultCallback(const FGameplayAbilityTargetDataHandle& TargetDataHandle);
};

게임 어빌리티 헤더



// Fill out your copyright notice in the Description page of Project Settings.


#include "GA/ABGA_AttackHitCheck.h"
#include "ArenaBattleGAS.h"
#include "AbilitySystemBlueprintLibrary.h"
#include "GA/AT/ABAT_Trace.h"
#include "GA/TA/ABTA_Trace.h"


UABGA_AttackHitCheck::UABGA_AttackHitCheck()
{
	InstancingPolicy = EGameplayAbilityInstancingPolicy::InstancedPerActor;
}

void UABGA_AttackHitCheck::ActivateAbility(const FGameplayAbilitySpecHandle Handle, const FGameplayAbilityActorInfo* ActorInfo, const FGameplayAbilityActivationInfo ActivationInfo, const FGameplayEventData* TriggerEventData)
{
	Super::ActivateAbility(Handle, ActorInfo, ActivationInfo, TriggerEventData);

	ABGAS_LOG(LogABGAS, Log, TEXT("Begin"));

	UABAT_Trace* AttackTraceTask = UABAT_Trace::CreateTask(this, AABTA_Trace::StaticClass());
	AttackTraceTask->OnComplete.AddDynamic(this, &UABGA_AttackHitCheck::OnTraceResultCallback);
	AttackTraceTask->ReadyForActivation();
}

void UABGA_AttackHitCheck::OnTraceResultCallback(const FGameplayAbilityTargetDataHandle& TargetDataHandle)
{
	if ( UAbilitySystemBlueprintLibrary::TargetDataHasHitResult(TargetDataHandle, 0) )
	{
		FHitResult HitResult = UAbilitySystemBlueprintLibrary::GetHitResultFromTargetData(TargetDataHandle, 0);
		ABGAS_LOG(LogABGAS, Log, TEXT("Target %s Detected"), *HitResult.GetActor()->GetName());
	}

	bool bReplicatedEndAbility = true;
	bool bWasCancelled = false;
	EndAbility(CurrentSpecHandle, CurrentActorInfo, CurrentActivationInfo, bReplicatedEndAbility, bWasCancelled);
}

어빌리티 태스크 만들고 OnComplete에 콜백 바인딩

그리고 ReadyForActivation으로 대기

타겟 액터부터 쭉 델리게이트 타고 올라와서 OnTraceResultCallback 실행될 것

어빌리티 종료

* 태스크가 타겟 액터를 스폰하려면 타겟 액터 클래스를 알아야 해서 게임플레이 어빌리티도 타겟 액터 헤더 인클루드 해야 함





제대로 실행되는 걸 확인 가능



정리

Anim Notify로 AttackHitCheck 활성화

-> 어빌리티 발동

-> 어빌리티 태스크 생성

-> 타겟 액터 생성

-> 타겟 액터 종료 델리게이트 브로드캐스트

-> 어빌리티 태스크 종료 델리게이트 브로드캐스트

-> 어빌리티 HitResult 획득
