[Drag Down] 기믹 액터 만들기(부드럽게 움직이기, 회전하기..)

Position을 원하는 만큼 추가하고 해당 위치를 순회하도록

그리고 X, Y, Z 회전을 넣고 싶다



그리고 블루프린트로 상속해서 스테틱 메시 설정 가능하도록 하자



// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "GameFramework/Actor.h"
#include "DDGimmickActor.generated.h"

UCLASS()
class DRAGDOWN_API ADDGimmickActor : public AActor
{
	GENERATED_BODY()

public:
	// Sets default values for this actor's properties
	ADDGimmickActor();

protected:
	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	TObjectPtr<class UStaticMeshComponent> StaticMeshComp;

protected:
	virtual void BeginPlay() override;

	void ActGimmick();

	UFUNCTION(BlueprintCallable)
	void OnActionFinished();

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	TArray< FVector > TargetPositions;

	int32 NowPos;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	TArray< FRotator > TargetRotations;

	int32 NowRot;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	float ActionTime;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	bool bIsEaseOut;

	UPROPERTY(EditAnywhere, BlueprintReadWrite, Category = "Gimmick")
	bool bIsEaseIn;


};


// Fill out your copyright notice in the Description page of Project Settings.


#include "Actor/DDGimmickActor.h"
#include "Components/StaticMeshComponent.h"
#include "Kismet/KismetSystemLibrary.h"
#include "DragDown.h"

// Sets default values
ADDGimmickActor::ADDGimmickActor()
{
    bReplicates = true;

    StaticMeshComp = CreateDefaultSubobject<UStaticMeshComponent>(TEXT("StaticMeshComp"));
    RootComponent = StaticMeshComp;

    ActionTime = 2.0f;
    NowPos = 0;
    NowRot = 0;

    bIsEaseOut = true;
    bIsEaseIn = true;
}

void ADDGimmickActor::BeginPlay()
{
    Super::BeginPlay();

    ActGimmick();
}

void ADDGimmickActor::ActGimmick()
{
    UE_LOG(LogDD, Log, TEXT("ActGimmick"));

    FVector TargetPos;
    FRotator TargetRot;

    if (TargetPositions.Num() == 0)
    {
        TargetPos = GetActorLocation();
    }
    else
    {
        TargetPos = TargetPositions[NowPos];
    }

    if (TargetRotations.Num() == 0)
    {
        TargetRot = GetActorRotation();
    }
    else
    {
        TargetRot = TargetRotations[NowRot];
    }

    FLatentActionInfo LatentInfo;
    LatentInfo.CallbackTarget = this;
    LatentInfo.ExecutionFunction = FName("OnActionFinished");
    LatentInfo.Linkage = 0;
    LatentInfo.UUID = __LINE__;

    UKismetSystemLibrary::MoveComponentTo(
        StaticMeshComp,
        TargetPos,
        TargetRot,
        bIsEaseOut,
        bIsEaseIn,
        ActionTime,
        false,
        EMoveComponentAction::Move,
        LatentInfo
    );
}

void ADDGimmickActor::OnActionFinished()
{
    UE_LOG(LogDD, Log, TEXT("OnActionFinished"));
    if (TargetPositions.Num() != 0)
    {
        NowPos = ++NowPos % TargetPositions.Num();
    }

    if (TargetRotations.Num() != 0)
    {
        NowRot = ++NowRot % TargetRotations.Num();
    }

    ActGimmick();
}

BeginPlay -> ActGimmick -> MoveComponentTo -> OnActionFinished -> ActGimmick -> ...
계속해서 반복하도록 코드 작성



bIsEaseOut / In은 처음에 부드럽게 출발, 천천히 출발하는 설정

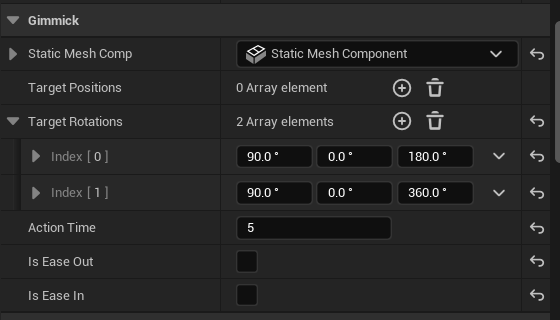

이런 식으로 Details에 설정 가능

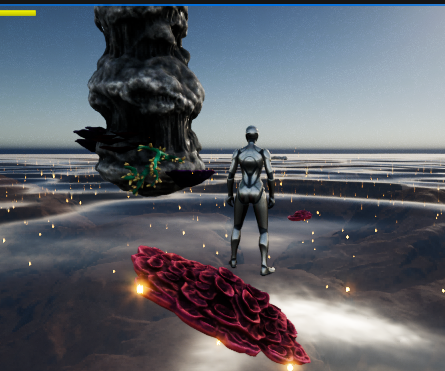

이렇게 동작함

근데 MoveComponentTo는 최소 거리로 움직이니 회전 방향 설정을 원하면 90 -> 180 -> 270 -> 360 이런 식으로 설정하면 됨
